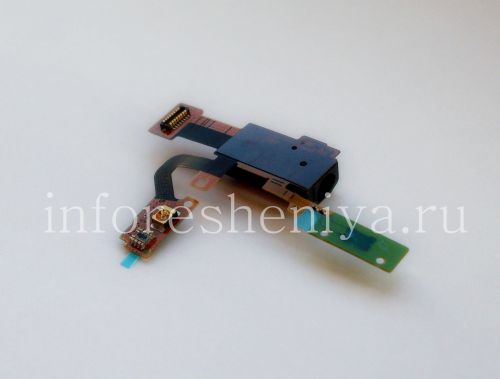

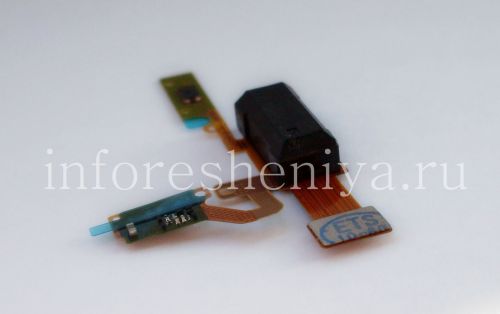

Audio connector (Headset Jack) T13 in assembly with proximity / light sensor and lock button for BlackBerry Z10 / 9982

Audio connector (Headset Jack) in the assembly with proximity / illumination sensor and lock button for BlackBerry Z10 and P'9982 Porsche Design. It is part of the Original rim in the assembly for BlackBerry Z10 .

It connects standard plugs: four-channel 3.5 mm TRRS (stereo) or three-channel TRS (mono), and thus allows you to connect headsets, car stereo systems via AUX cable, and other media devices to the smartphone, Other equipment controlled via a 3.5mm connector.

This is an original BlackBerry quality spare part. In the event of damage to this element, for example, physical, or if moisture has fallen, the audio connector can no longer perform its functions. The solution to the problem is to replace the connector, since it is impossible to "repair" it in most cases: this is due to physical damage to its contacts. For more information on repairing the audio connector, see page Replacement audio jacks.

The peculiarity of the audio connector for BlackBerry Z10 and P'9982 Porsche Design is that the proximity / illumination sensor and the device lock button are also installed on this part. Therefore, in cases where the screen does not adjust its brightness depending on the lighting of the environment, when the screen does not fade when the BlackBerry is brought to your ear during a conversation, if the lock button is damaged, this component also needs to be replaced.

The audio jack for the STL100-2, STL100-3, STL100-4 versions also includes a T9 voice speaker.

The spare part is installed on the rim of the case of the smartphone BlackBerry. In some cases, it is preferable to replace the bezel completely. If you plan to make repairs yourself, consult a specialist.

Audio connector versions for BlackBerry Z10 / 9982:

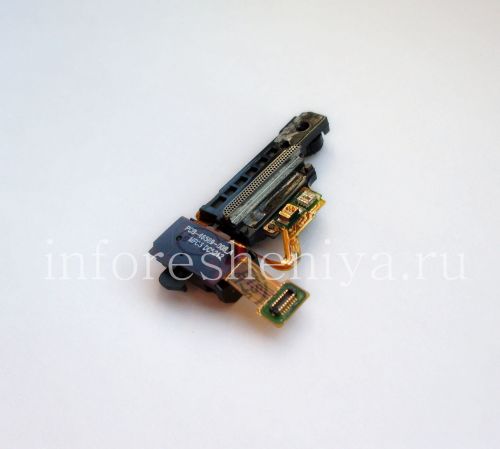

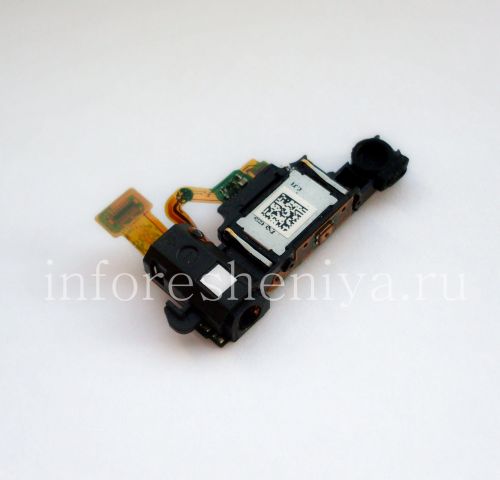

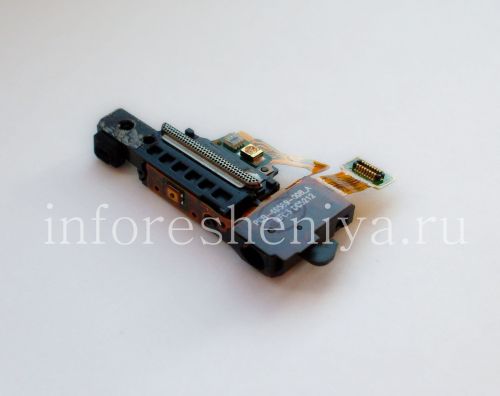

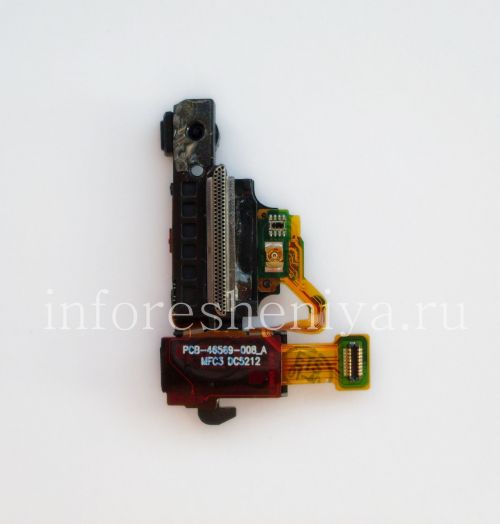

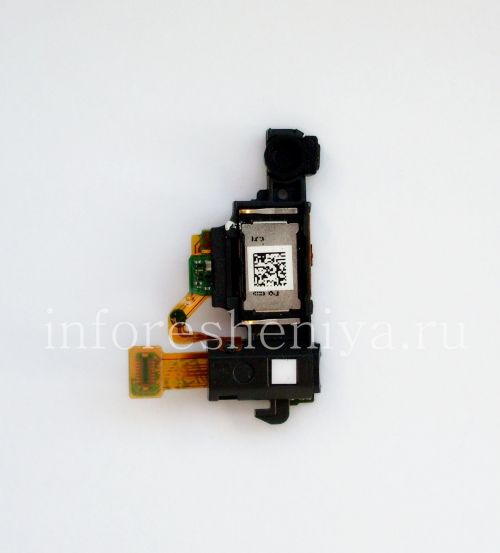

• BlackBerry Z10 STL100-2,3,4 and P'9982, with a T9 speaker , AJACK-T13-T1 (PCB-46569-008, HDW-47356)

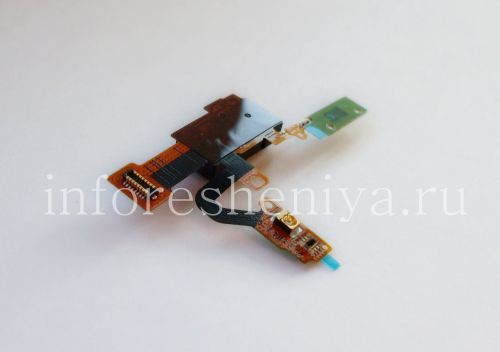

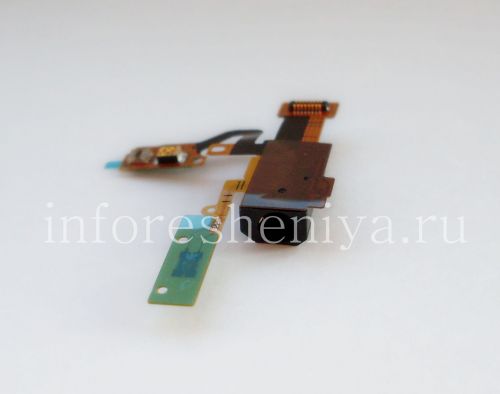

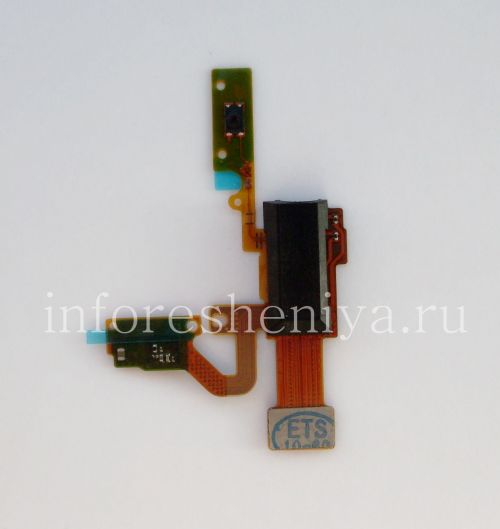

• BlackBerry Z10 STL100-1, AJACK-T13-T2
